Mesh Wi-Fi systems have become a lot more popular in recent years. They are a very good choice when you want wireless coverage for larger living spaces or office areas, and most of them offer almost the same features as traditional routers do. This is also true for Synology WRX560, the latest mesh router from Synology. This model brings Wi-Fi 6 support and is capable of working with ultra-fast 2.5 Gbps internet connections that are slowly popping up worldwide. If you’re curious to learn more about Synology WRX560 and what it offers, read this review:
The packaging for Synology WRX560 is very straightforward
On the back, there’s some information about its hardware and a list of what you’re supposed to find inside the box.
There are few details printed on the back
As soon as you open the box, you see a black fabric cover protecting the mesh router. When you take everything out, you get the Synology WRX560, its power adapter, a short CAT5e network cable, and the quick installation guide.

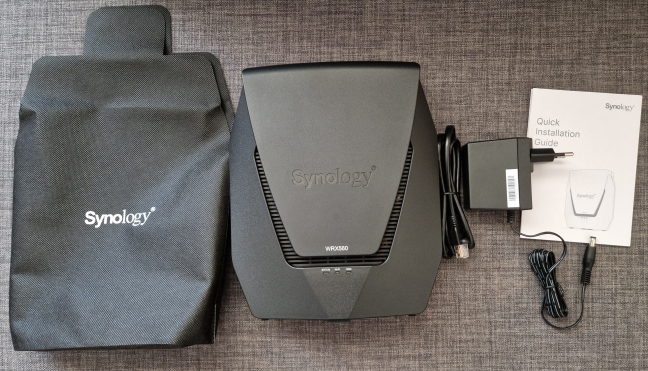

Everything you find inside the box
Unboxing the Synology WRX560 is a straightforward experience. Inside the box, you only find the basics needed to get started.

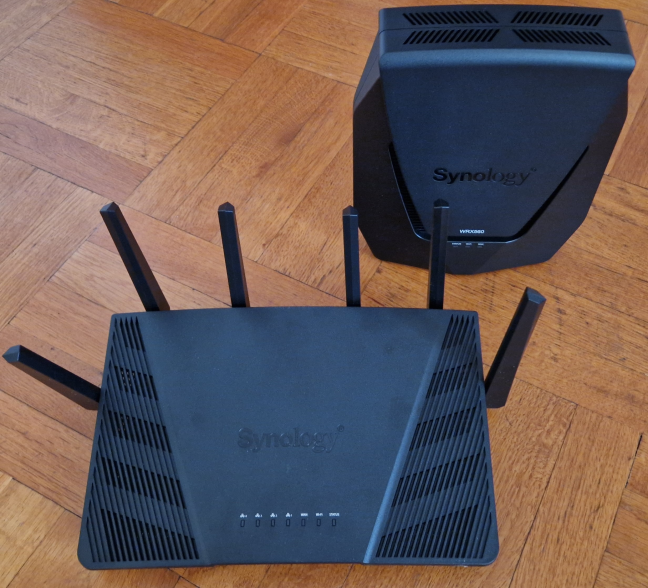

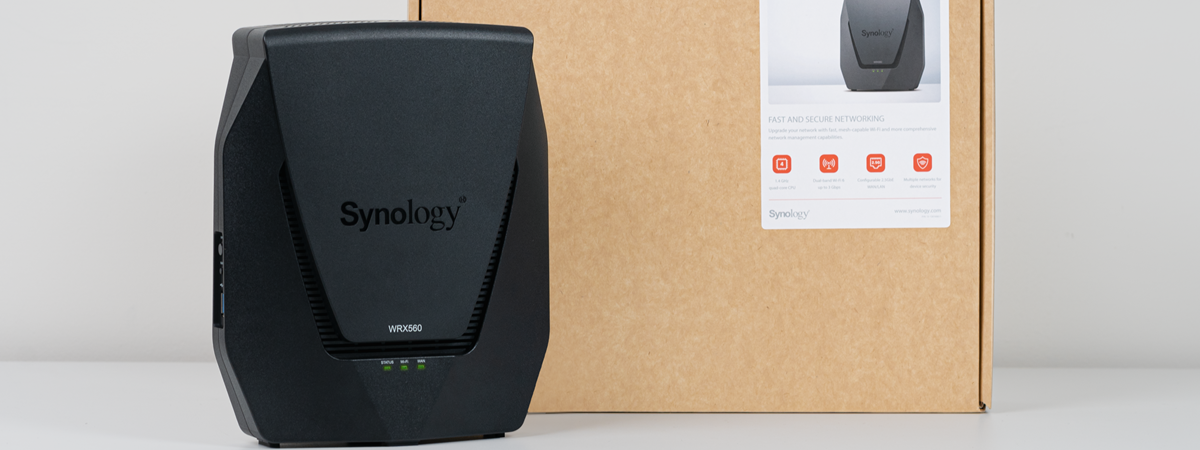

Synology WRX560 in tandem with Synology RT6600ax

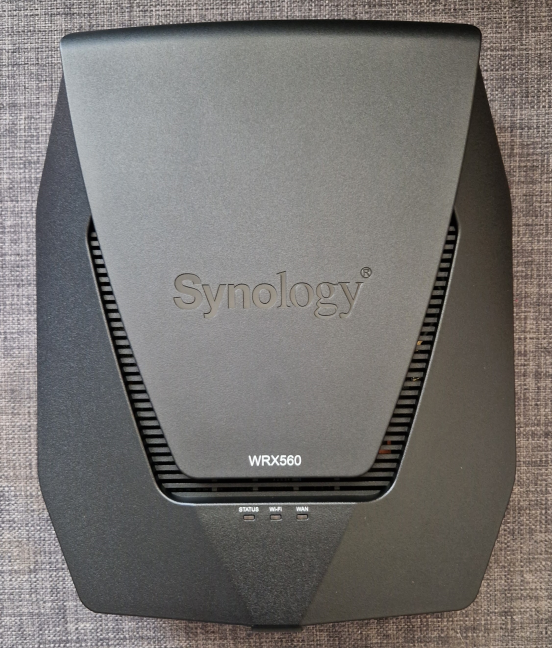

Synology WRX560 is a tall vertical device without any external antennas. It is 9.17 x 7.63 x 2.59 inches (or 233 mm x 194 mm x 66 mm) in height x width x depth. Weighing 2.97 lbs (1.35 kg), it’s not a small device, but it’s not as heavy as a typical router either. On the front, you see Synology’s logo, some discreet ventilation grids, the model name, and the LEDs signaling the device’s working status.
Synology WRX560 has no external antennas

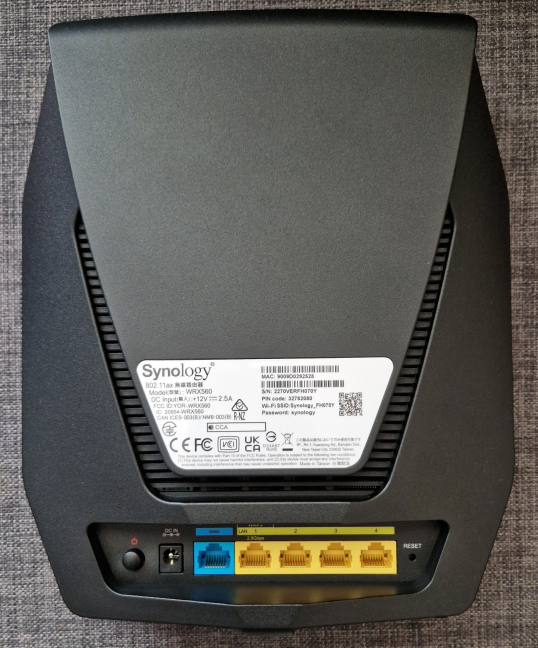

On the back, there’s a sticker with information about the mesh router you just bought, its serial number, MAC address, and so on. You also have the Power button and the Power jack, one 1 Gbps WAN port, one 2.5 Gbps WAN/LAN port, and three LAN ports working at 1 Gbps. The Reset button is next to them.
The ports on the back
Considering that Synology WRX560 is a powerful Wi-Fi 6 mesh router, I would have preferred it to have at least two 2.5 Gbps ports, if not more, so that more devices can benefit from its power.

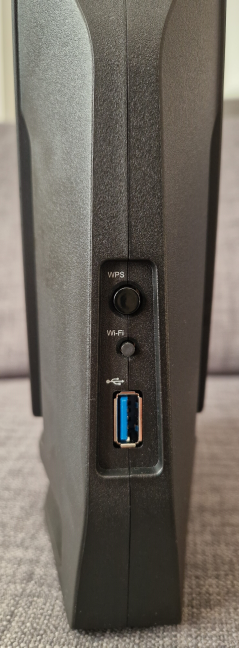

On one side of the mesh router, you find one USB 3.2 Gen 1 port alongside the WPS and WiFi buttons.
Synology WRX560 has a USB 3.2 Gen 1 port

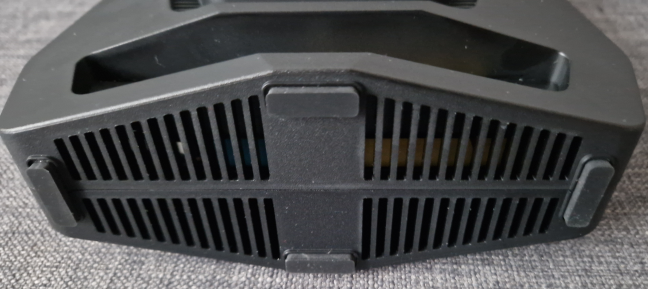

On its bottom, there are four rubber feet, useful for keeping the mesh router in place on a flat surface, and several ventilation grids. Unfortunately, there’s no system available for mounting the Synology WRX560 on walls, which may be a downside for some users.
Four rubber feet hold the Synology WRX560 into place
This dual-band mesh router emits its signal on the 2.4 GHz and 5 GHz bands. The maximum theoretical bandwidth is 600 Mbps on the 2.4 GHz band and 2400 Mbps on the 5 GHz band. It also offers 2x2 MU-MIMO transfers on the 2.4 GHz band and 4x4 MU-MIMO transfers on 5 GHz. Synology WRX560 can work with all wireless standards up to Wi-Fi 6, and it offers support for WPA3 encryption too. It can also use the 160 MHz channel width on the 5 GHz band. Inside the Synology WRX560, there’s a quad-core Qualcomm Hawkeye IPQ8071A processor running at 1.4 GHz and 512 MB of DDR4 RAM, which should be more than enough for most users.
Details about its hardware configuration
For even more technical information about this product, I recommend visiting its official page: Synology WRX560.

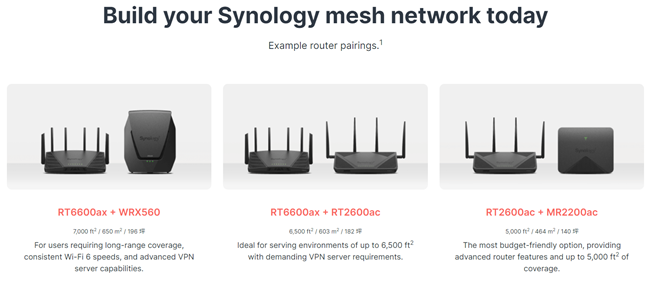

Synology products for mesh Wi-Fi
You can set up the Synology WRX560 using a web browser on a computer connected to the network managed by this mesh router and with the DS router app for Android or iOS. However, since I was building a mesh, I first configured the main router (Synology RT6600ax) and then added Synology WRX560. The instructions for adding Wi-Fi points are clear and easy to follow.

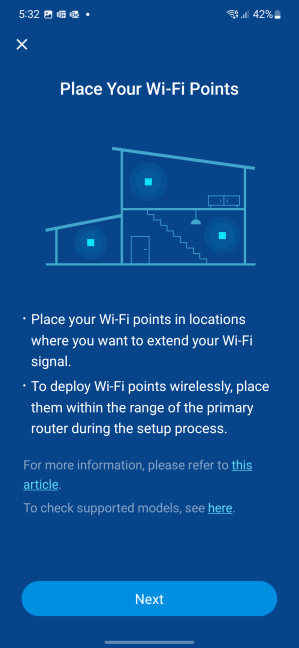

Adding Wi-Fi Points from the DS router app is easy

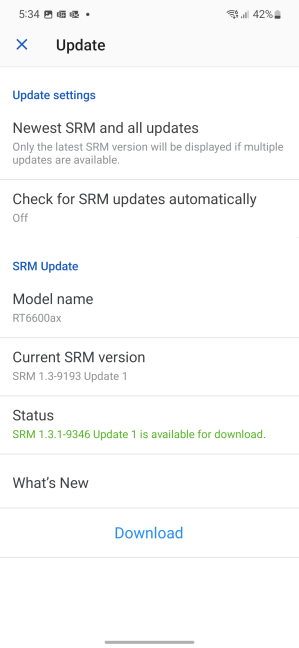

Before you add the Synology WRX560 to the mesh system, you should first update the SRM firmware on the main router to the latest version to ensure that it’s compatible with the WRX560.
Updating SRM is a must
You can add one or more Synology WRX560 Wi-Fi points to your network, depending on your needs. You’ll see them in the Network Map, and they’ll automatically clone the settings on your main Synology router.

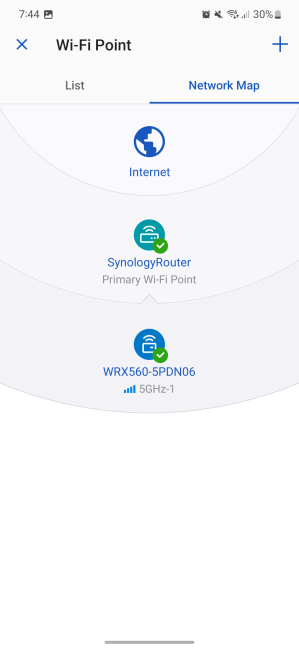

A mesh Wi-Fi network with Synology devices
Therefore, any settings changes on the main router get replicated by the WiFi points in your network, and you’ll see them function as one unit instead of separate ones.

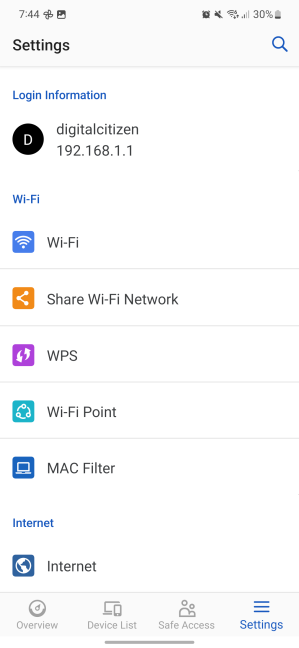

DS router includes many settings
The DS router app offers an extensive list of configuration options. You can manage your Wi-Fi settings, share the connection details with others, manage connected devices, configure parental controls, and access many other features like VPN, port forwarding rules, the firewall, or firmware updates. While the DS router app is not as comprehensive as the web-based admin interface (Synology Router Manager or SRM), it covers most of the things you need.
Moving on to the SRM, it is available in twenty languages (less common languages like my native Romanian are not included though), incredibly modular (you install the features/packages you want and remove those you don’t), well organized, and with plenty of advanced configuration options.
SRM is available in twenty languages

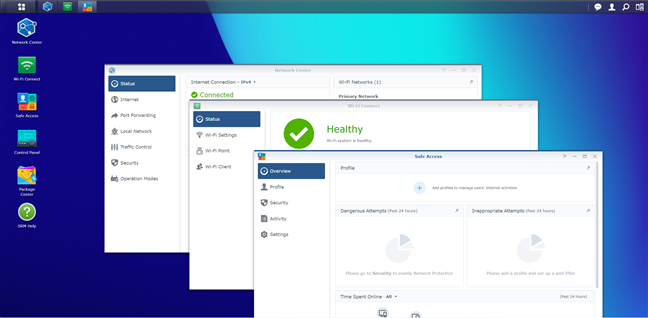

Navigating it feels like using a Linux desktop, which is great and makes it easy to use, even if you’re not very tech-savvy.
SRM looks like a Linux desktop
Another upside is the well-organized and easily accessible user documentation. Even if you come across more technical settings, you have all the information you need to properly set things up. And you can also contact Synology’s support team straight from the SRM interface, which is very helpful when encountering problems you can’t fix.

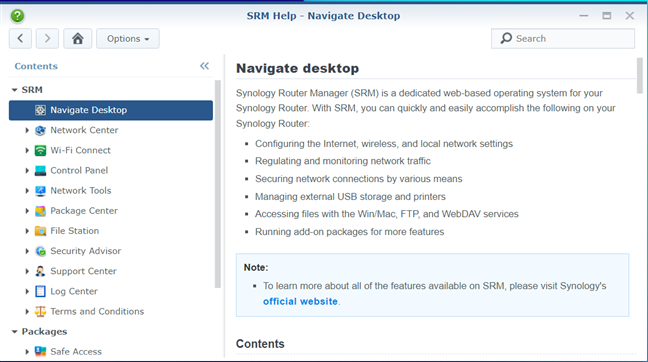

The Help Documentation is very thorough
Another aspect I appreciate about the SRM is its focus on security and privacy. You can set up different user accounts with different roles and explicit permissions and even enable two-step verification to ensure it’s not easy for someone outside your network to hack into it.
While using the mesh Wi-Fi network managed by the two Synology devices I received for testing, I didn’t stumble upon any connection or stability issues. I appreciated how well the network worked when using Wi-Fi 6 and how stable network transfers were, especially on the 5 GHz band. Below, you have an example of a network transfer made through the Synology WRX560 in a room separated by one wall from the main router (Synology RT6600ax). It’s very stable, with small differences between the minimum and maximum speed.
A Wi-Fi 6 data transfer on the 5 GHz band
Overall, I’m pleased with my experience with Synology WRX560. It’s a great mesh router that offers almost everything you need.
If you want to know more about the real-world performance offered by the Synology WRX560, go to the next page of this review, where I present detailed measurements and comparisons.
The apartment where I tested Synology WRX560
I evaluated the quality of the wireless network managed by the mesh system through measurements made in three different places:
Signal strength on Wi-Fi 4 (2.4 GHz band)
Switching to Wi-Fi 6 (802.11ax) on the 2.4 GHz band delivered a slightly lower signal strength.
Signal strength on Wi-Fi 6 (2.4 GHz band)
Next, I ran the SpeedTest app and used it to measure the maximum speed when transferring data to and from the internet on the 2.4 GHz band through Wi-Fi 4. The download speed offered by the mesh system was good, especially in the rooms further away from the main router.
SpeedTest - The download speed on Wi-Fi 4 (2.4 GHz)
The same happened with the upload speed too. However, the ASUS ZenWiFi Pro ET12 outperformed the Synology mesh Wi-Fi system.
SpeedTest - The upload speed on Wi-Fi 4 (2.4 GHz)
I switched to Wi-Fi 6 on the 2.4 GHz band, and I noticed significantly faster download speeds everywhere in my apartment. Adding the Synology WRX560 made a great difference in the rooms furthest from the main router.
SpeedTest - The download speed on Wi-Fi 6 (2.4 GHz)
The same was true for the upload speed. The impact of using a mesh Wi-Fi system vs. only one router was even more significant than when measuring the download speed.
SpeedTest - The upload speed on Wi-Fi 6 (2.4 GHz)
For the next set of measurements, I used the PassMark Performance test to transfer data between two computers connected to the network. On the 2.4 GHz band, when using the Wi-Fi 4 standard, Synology WRX560 delivers fast downloads.
Network Wi-Fi downloads on Wi-Fi 4 (2.4 GHz)
The same is true for the uploads, even though Synology WRX560 is not as fast as other mesh Wi-Fi systems.
Network Wi-Fi uploads on Wi-Fi 4 (2.4 GHz)
Switching to Wi-Fi 6 on the 2.4 GHz also meant fast downloads inside the network managed by the Synology router together with the WRX560.
Network Wi-Fi downloads on Wi-Fi 6 (2.4 GHz)
Uploads were also fast on Wi-Fi 6, but only a little faster than when using Wi-Fi 4.
Network Wi-Fi uploads on Wi-Fi 6 (2.4 GHz)
Creating a mesh Wi-Fi system with Synology WRX560 delivers satisfying coverage and speed on the 2.4 GHz band, both when using Wi-Fi 4 and Wi-Fi 6.
Signal strength on Wi-Fi 5 (5 GHz band)
Switching to Wi-Fi 6 meant the signal strength decreased slightly, but without becoming problematic.
Signal strength on Wi-Fi 6 (5 GHz band)
I switched to the SpeedTest app. When using the Wi-Fi 5 standard, download speeds were surprisingly low.
SpeedTest - The download speed on Wi-Fi 5 (5 GHz)
However, uploads were quite fast, which leads me to believe that the slow download speeds are a bug that can and should be fixed in future firmware updates for Synology WRX560.
SpeedTest - The upload speed on Wi-Fi 5 (5 GHz)
I moved to Wi-Fi 6 and repeated the same measurements with SpeedTest. This time, the Synology WRX560 delivered very fast download speeds everywhere in my apartment.
SpeedTest - The download speed on Wi-Fi 6 (5 GHz)
Upload speeds were great too, close to the maximum allowed by my internet connection: 800 Mbps.
SpeedTest - The upload speed on Wi-Fi 6 (5 GHz)
For the next set of measurements, I used the PassMark Performance test to transfer data between two computers connected to the network. Here, you see the average speed you get when transferring data only inside the network, not on the internet. When using the Wi-Fi 5 standard, downloads were again on the lower end of the spectrum.
Network Wi-Fi downloads on Wi-Fi 5 (5 GHz)
The same was true for uploads on Wi-Fi 5.
Network Wi-Fi uploads on Wi-Fi 5 (5 GHz)

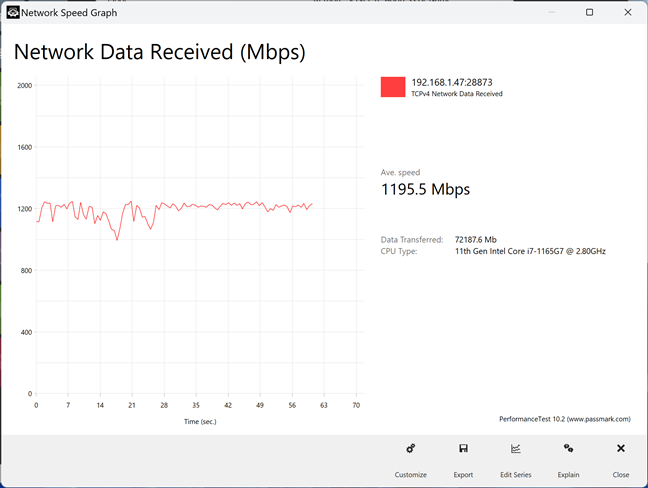

However, when I switched to Wi-Fi 6, things improved tremendously. Below, you can see how the download speed evolved in every room.
Network Wi-Fi downloads on Wi-Fi 6 (5 GHz)
Uploads were super fast too.
Network Wi-Fi uploads on Wi-Fi 6 (5 GHz)
The Synology WRX560 works great when using the Wi-Fi 6 standard on the 5 GHz band. However, its performance needs some improvement when switching to the older Wi-Fi 5 standard.
SpeedTest on wired connections
I also plugged a fast SSD drive into the USB 3.2 Gen 1 port of the router and made some data transfers on it. The download and upload speeds you get from Synology WRX560 are excellent and within close range of those offered by the slightly more powerful Synology RT6600ax.
The speed of the USB 3.2 Gen 1 port
Synology WRX560 works great with both 1 Gbps and 2.5 Gbps Ethernet connections. Also, its USB 3.2 Gen 1 port is really fast, making it a great choice for people who want to build their own NAS (Network Attached Storage). My only complaint is that I would have liked more 2.5 Gbps ports on the WRX560, instead of just one.
There are many advanced features that you can install and configure
Synology WRX560: Who is it good for?
This mesh Wi-Fi system is a suitable choice for:- Users with fast 1 Gbps or 2.5 Gbps internet connections
- People who need Wi-Fi coverage for larger spaces, including multi-floor homes or small business offices
- Users who want efficient security, parental controls, VPN, and other advanced features on their router
- Wi-Fi networks with many connected devices
- People who are looking for a mesh router with a fast USB port and intend to turn it into a NAS or media server
Pros and cons
Here are the things I like about Synology WRX560:
- Solid hardware that can handle many network devices
- Great performance when using Wi-Fi 6
- WPA3 encryption support
- Modular firmware with many advanced features
- Ultra-fast USB 3.2 Gen 1 port
- Top-notch security tools and parental controls
- Excellent help documentation
- It should have had more than one LAN 2.5 Gbps port
- When using Wi-Fi 5 (802.11ac), the speed you get is not that great
Verdict
The Synology WRX560 is a perfect mesh router for modern smart homes and small offices. It bundles Wi-Fi 6 connectivity, excellent software, the ability to work with ultra-fast 2.5 Gbps internet connections, and many additional features like VPN Plus, efficient parental controls, and advanced security tools. If you already have a Synology router and want to extend your network coverage, Synology WRX560 is a great choice. The same applies if you’re building a mesh Wi-Fi system from scratch. I recommend it to anyone who wants a great mesh solution for their home or small company office.Unboxing the Synology WRX560
Synology WRX560 comes in a simple cardboard box with a sticker on it. You can see a picture of the device and some of its most important characteristics.Hardware specifications and design
Synology WRX560 is a mesh router, meaning that it was designed to be used in tandem with other Synology routers or mesh devices to provide Wi-Fi over a larger area, like a multi-floor home, small business office, or industrial space. I used it together with a Synology RT6600ax router I reviewed a few months ago. As shown in the picture below, this mesh router doesn’t have a classical design.Setting up and using the Synology WRX560
Before you install the Synology WRX560, I recommend reading this guide on how to set up your mesh Wi-Fi: How do I deploy my Synology Wi-Fi system to achieve the best connection? While the Synology WRX560 works great on its own, it is better to pair it with a more powerful router like the Synology RT6600ax I used for this review. For more information about Synology routers, and their capabilities, check this page: Meet the Synology router family.Wireless network performance
I have used a Synology RT6600ax router as the main device in the mesh Wi-Fi system and the Synology WRX560 as a secondary node, placed according to the diagram below. WRX560 is placed in Room 1 to provide better Wi-Fi in Room 2, where most routers struggle.- I recorded the maximum speeds when no walls absorb the wireless signal in the room where the main node is placed.
- Room 1 - is separated by one wall from the main router.
- Room 2 - is separated from the main router by two walls absorbing the wireless signal. Also, the wall between Room 1 and Room 2 is twice as thick as the one between the router’s room and Room 1. As a result, Room 2 can be a difficult challenge for many routers, but it should not be a problem for a mesh Wi-Fi system.
How the Synology WRX560 performs on the 2.4 GHz band
I first measured the signal strength using NetSpot on the Wi-Fi 4 (802.11n) standard. As you can see, the signal strength offered by the mesh Wi-Fi system with Synology WRX560 was better in the rooms further from the main router than it was when using only the Synology RT6600ax router.How the Synology WRX560 performs on the 5 GHz band
I moved on to the 5 GHz band and repeated the same measurements. I started using the Wi-Fi 5 standard and fired up NetSpot to analyze the signal strength. Having a mesh Wi-Fi system with the Synology WRX560 meant I enjoyed good signal strength everywhere in my apartment. It was funny that the signal strength was better in the rooms furthest away from the main router than in the room where it was placed.Wired network performance & USB port
In this section, I evaluate the performance of Ethernet network connections. My internet connection offers a maximum of 1 Gbps for the download speed and 800 Mbps for uploads. SpeedTest measured the Synology WRX560, reaching speeds very close to my internet connection’s maximum potential.Extra features
The firmware on the Synology WRX560 has many advanced features. However, most are not installed or enabled by default, thus ensuring they don’t eat up hardware resources unless you want to use them. Here’s everything you can get from this mesh router:- Safe Access - a security module that includes cloud-based parental controls, a security advisor, safe online search and web browsing, and threat prevention. This one is installed by default with Synology WRX560 but is not enabled.
- VPN Plus Server - you can set the mesh router to work as a VPN server. You can also use it to turn your network-connected devices into VPN-enabled clients without additional VPN software required.
- Threat Prevention - identifies malicious packets and network threats, preventing your network from infection and data compromise.
- Download Station - a web-based application for downloading files from the internet straight to a storage drive connected to the router’s USB port, using various protocols.
- Media Server - turns a storage drive connected to the router into a streaming server for the entire network, with music, photos, and videos stored on it. This service is compatible with Xbox and PlayStation consoles.
- DNS Server - you can set your router to work as a DNS server and provide name and IP address resolution services. This is a feature you won’t find on routers from other manufacturers.
- RADIUS Server - a networking protocol that provides centralized authentication, authorization, and accounting for wireless network access. This feature is aimed mostly at business users.
- Dual WAN - useful for small businesses and professionals who require always-on internet connections. You can also use a Dual WAN to improve the quality of your internet connection and get the best possible performance.
- 4G/5G Dongle and Tethering - you can connect a USB modem to provide the mesh router with a backup internet connection when the main one doesn’t work.
- Guest Network - you can enable a wireless network with separate security from the rest of your network, a customized Guest portal (useful for business users), and different access settings.
- Network Tools - a collection of troubleshooting tools in case things don’t work well in your network.
- DDNS - a service that allows you to connect to the router from the internet, even if your internet provider gives you a dynamic public IP address.
