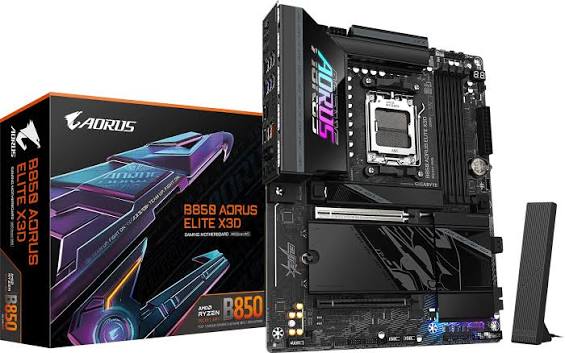

Gigabyte has quietly added the B850 Aorus Elite X3D to its AM5 motherboard lineup, giving Ryzen X3D buyers another board built around gaming focused CPU tuning. The new model supports Gigabyte’s X3D Turbo Mode 2.0, a platform level optimization feature designed to improve performance on AMD’s Ryzen processors with 3D V Cache.
The motherboard appears to sit above the standard B850 Aorus Elite WiFi7 in Gigabyte’s product stack. It uses a stronger power design, adds more onboard controls, and includes a wider selection of connectivity for builders who want a feature rich AM5 system without moving to an X870 chipset board.
Gigabyte has not announced a price or release date, but the board is already appearing as part of its growing B850 range.
X3D Turbo Mode 2.0 Targets Ryzen Gaming Processors
X3D Turbo Mode 2.0 is the main feature separating this board from a typical B850 option. Ryzen X3D processors do not respond to tuning in the same way as standard Ryzen chips, partly because their extra cache design requires different power and clock management.
Gigabyte’s tool offers three preset modes that are intended to adjust the system based on the workload:
| X3D Turbo Mode 2.0 setting | Intended use |
|---|---|
| Standard | Balanced daily use and default behavior |
| Max Performance | Higher performance for broader workloads |
| Extreme Gaming | Gaming focused CPU optimization |
The feature is designed to make Ryzen X3D tuning more accessible through the BIOS. Instead of manually changing several settings, you can select a preset that matches your intended use.
Actual results will depend on the processor, cooling, memory kit, graphics card, game, BIOS version, and power limits. The feature may be more noticeable in CPU limited games than in GPU limited titles at high resolutions.
The Board Uses a 20 Phase Power Design
The B850 Aorus Elite X3D includes a 16+2+2 power phase VRM design. This should provide stable power delivery for Ryzen 7 and Ryzen 9 processors, including higher end X3D models that may be paired with fast memory and powerful graphics cards.
The board also includes large heatsinks around the power delivery area to help manage temperatures during long gaming sessions or heavier workloads. Gigabyte has included multiple fan headers and AIO pump headers, which should make it easier to build a system with air cooling or liquid cooling.
Other onboard features include a debug code display, RGB lighting, and physical buttons for power, reset, Clear CMOS, and Q Flash. These additions are especially useful for people who frequently test hardware, troubleshoot new builds, or update BIOS versions.
DDR5 and Expansion Support Cover Modern AM5 Builds
The motherboard includes four DDR5 memory slots with support for up to 256GB of memory. Gigabyte lists support for memory speeds up to 8200 MT/s, although real world stability at extreme speeds will depend on the CPU memory controller and the RAM kit.
It also includes two full length PCIe slots. The primary slot supports PCIe 5.0, while the second uses PCIe 4.0. This gives the board room for a modern graphics card, expansion card, or other high bandwidth hardware.
Rear Connectivity Looks Strong for a B850 Board
Gigabyte has equipped the B850 Aorus Elite X3D with a generous rear I/O selection. It includes several USB Type A ports for peripherals, dual high speed USB Type C ports, Wi Fi support, and 2.5Gb Ethernet.
For many AM5 builders, the board could offer a useful middle ground. It provides newer connectivity and Ryzen X3D tuning features without requiring a more expensive flagship chipset.
The remaining question is price. If Gigabyte positions it close to standard B850 boards, the B850 Aorus Elite X3D could become an appealing option for gamers building around processors such as the Ryzen 7 9800X3D or Ryzen 9 X3D models.
