Colorful has demonstrated its new iGame X870E ULTRA-S V14 motherboard running 192GB of DDR5 memory at 6600 MT/s with CL28 timings, achieving an impressive result for an AMD AM5 system using all four memory slots.
The company tested the motherboard with an AMD Ryzen 7 9850X3D processor and four 48GB DDR5 memory modules. According to Colorful, the configuration successfully completed an extended RunMemTestPro stability test without reporting any errors.
The demonstration is notable because achieving high DDR5 speeds becomes more challenging when all four memory slots are populated. Most high frequency memory configurations rely on two modules to reduce the electrical demands placed on the processor's memory controller.
Colorful's result suggests that its new X870E motherboard can handle large memory capacities while maintaining relatively high transfer speeds and tight timings, at least under the conditions used during testing.
Colorful Achieves DDR5 6600 CL28 With 192GB Memory
The testing configuration combined four high capacity DDR5 modules, each offering 48GB of memory.
Together, the modules provided 192GB of total system memory while operating at 6600 MT/s with CAS latency set to 28.
The motherboard successfully completed a RunMemTestPro stability test, reaching 100% completion without errors.
This is an important result because four module configurations generally place greater demands on the CPU's integrated memory controller than two module setups.
Maintaining stability at high memory frequencies may require adjustments to memory timings, voltages, motherboard firmware, and processor settings.
Here are the main specifications and testing details.
| Specification | Details |
|---|---|
| Motherboard | Colorful iGame X870E ULTRA-S V14 |
| Chipset | AMD X870E |
| Processor used | AMD Ryzen 7 9850X3D |
| Memory capacity | 192GB |
| Memory configuration | Four 48GB DDR5 modules |
| Tested memory speed | 6600 MT/s |
| CAS latency | CL28 |
| Stability testing | RunMemTestPro |
| Test result | 100% completion without errors |
| Advertised memory overclocking | DDR5 8400+ |
| Motherboard form factor | ATX |
The DDR5 8400+ specification represents the motherboard's advertised overclocking capability and should not be confused with the demonstrated 192GB configuration.
Colorful has not established that the motherboard can operate four 48GB modules at 8400 MT/s.
Why Running Four DDR5 Modules at High Speeds Is Difficult
DDR5 memory performance depends on several factors, including the motherboard layout, processor memory controller, firmware, and memory modules.
When a system uses four memory modules, the processor must manage additional electrical loading and signal complexity.
These factors can make it more difficult to maintain stability at higher memory frequencies.
Consequently, motherboard manufacturers often advertise their highest supported memory overclocking speeds using configurations with fewer modules.
Colorful's test is particularly interesting because it combines a large 192GB capacity with a relatively aggressive DDR5 6600 CL28 configuration.
At 6600 MT/s, the memory operates at a high transfer rate, while CL28 indicates relatively tight CAS latency timings.
Using the advertised speed and CAS latency, the theoretical first word CAS latency works out to approximately 8.5 nanoseconds.
However, actual application performance depends on more than CAS latency alone. Other timings, memory controller behavior, and workload characteristics also influence overall results.
The demonstration confirms stability under the reported testing conditions, but it does not guarantee that every processor and memory kit will achieve identical settings.

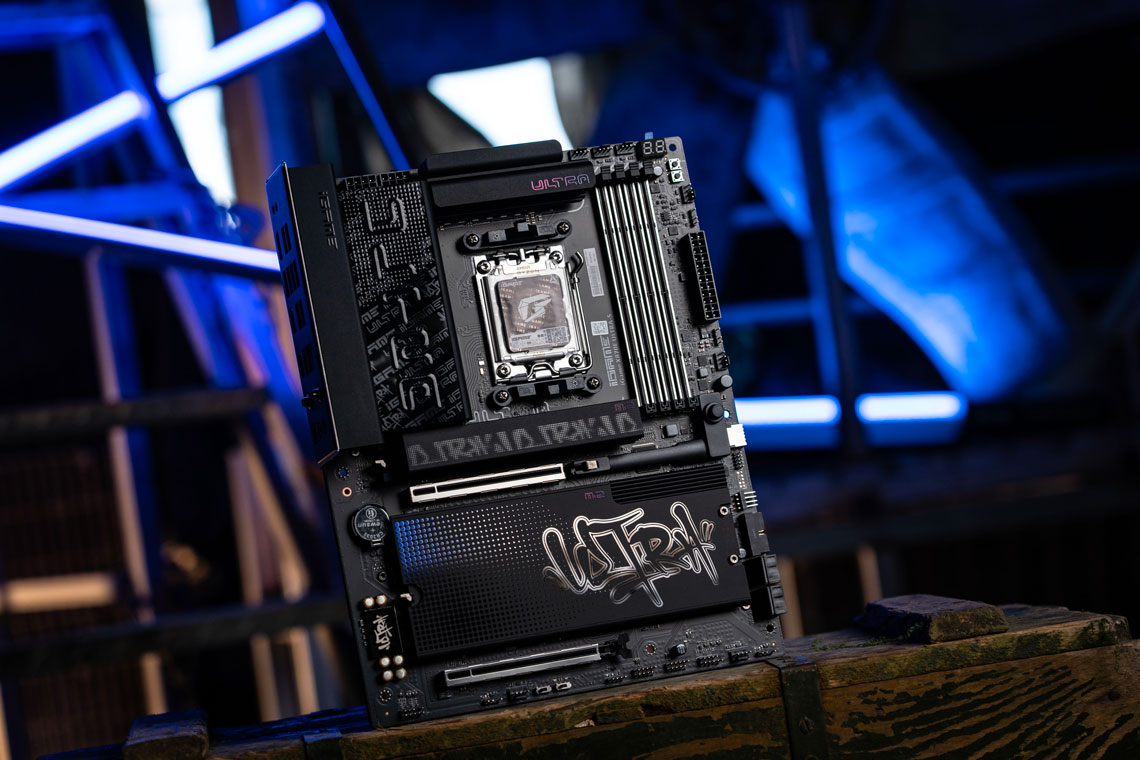

iGame X870E ULTRA-S V14 Includes a 16+2+1 Phase Power Design
Colorful has equipped the new motherboard with several features intended for high performance systems and memory overclocking.
The board uses an eight layer printed circuit board design, which can help maintain signal integrity and support the routing requirements of modern memory and expansion interfaces.
Its power delivery system features a 16+2+1 phase configuration with 80A DrMOS power stages.
The motherboard also includes two 8 pin EPS power connectors to provide additional power delivery capacity for supported processors.
An independent clock generator offers further control over operating frequencies, which may appeal to enthusiasts interested in processor and memory tuning.
These features indicate that the motherboard is designed for demanding hardware configurations, including systems using AMD's Ryzen X3D processors.
Colorful X870E Motherboard Offers Five M.2 Slots and PCIe Expansion
Beyond its memory capabilities, the iGame X870E ULTRA-S V14 includes several storage and expansion options.
The motherboard provides five M.2 connectors for solid state drives, allowing builders to install multiple high speed storage devices.
Four SATA III ports are also available for connecting additional drives.
For expansion cards, Colorful includes two PCIe slots.
The board also features quick release mechanisms designed to simplify the installation and removal of expansion cards and M.2 storage devices.
Another feature is Colorful's X3D AI High Frame Rate mode.
This technology adjusts processor related settings for gaming workloads, although the company has not provided detailed performance comparisons demonstrating its benefits.
The feature appears intended to complement AMD's X3D processors, which use additional cache to improve performance in supported workloads.
Colorful Plans China Launch Before November 11
Colorful intends to introduce the iGame X870E ULTRA-S V14 in China ahead of the November 11 shopping event.
The company has not announced an official retail price or confirmed whether the motherboard will become available internationally.
Its combination of extensive storage connectivity, advanced power delivery, and high capacity DDR5 support suggests that it is aimed at enthusiasts building powerful AM5 desktop systems.
The 192GB DDR5 6600 CL28 demonstration also gives the motherboard a notable specification ahead of its release.
However, buyers should distinguish between a manufacturer demonstration and broadly guaranteed memory compatibility.
Achieving the same result may depend on the specific processor, memory modules, BIOS version, and configuration settings.
Independent testing will be useful for determining whether the motherboard can consistently reproduce the demonstrated memory performance across different hardware combinations.
For now, Colorful's stability test provides an early indication of what its upcoming X870E motherboard can achieve when paired with a high performance Ryzen processor and four high capacity DDR5 modules.
