Cooler Master has started bringing its GPU Shield safety feature to retail power supplies, beginning with the new MWE Gold V4 series in China. The feature is designed to monitor the 16 pin GPU power connector and reduce the risk of damage caused by abnormal current levels.
The MWE Gold V4 is already listed for preorder in China. The 850W model is priced at 659 RMB, which is around $97, and a 1000W model has also appeared. The 850W version includes ATX 3.1 support, a 10 year warranty, and native GPU Shield support through the power supply side 12V 2x6 connector.
GPU Shield is Cooler Master’s answer to the ongoing concern around modern high power GPU connectors. Over the past few years, several companies have introduced their own protection methods after reports of damaged or melted 16 pin connectors on powerful graphics cards. Some systems monitor heat, some watch current balance, and others can shut down power when they detect a problem.
Cooler Master’s version focuses on current monitoring. It checks the current on the 12V pins of the 16 pin connector and uses an LED near the connector to show the status. There is no software readout, and there does not appear to be a buzzer alert.
| GPU Shield status | What it means |
|---|---|
| Below 9.3A per pin | Normal operation with green LED |
| Above 9.3A per pin | Abnormal current with flashing red LED |
| Above 15A per pin | Protection mode activates and GPU power is cut |

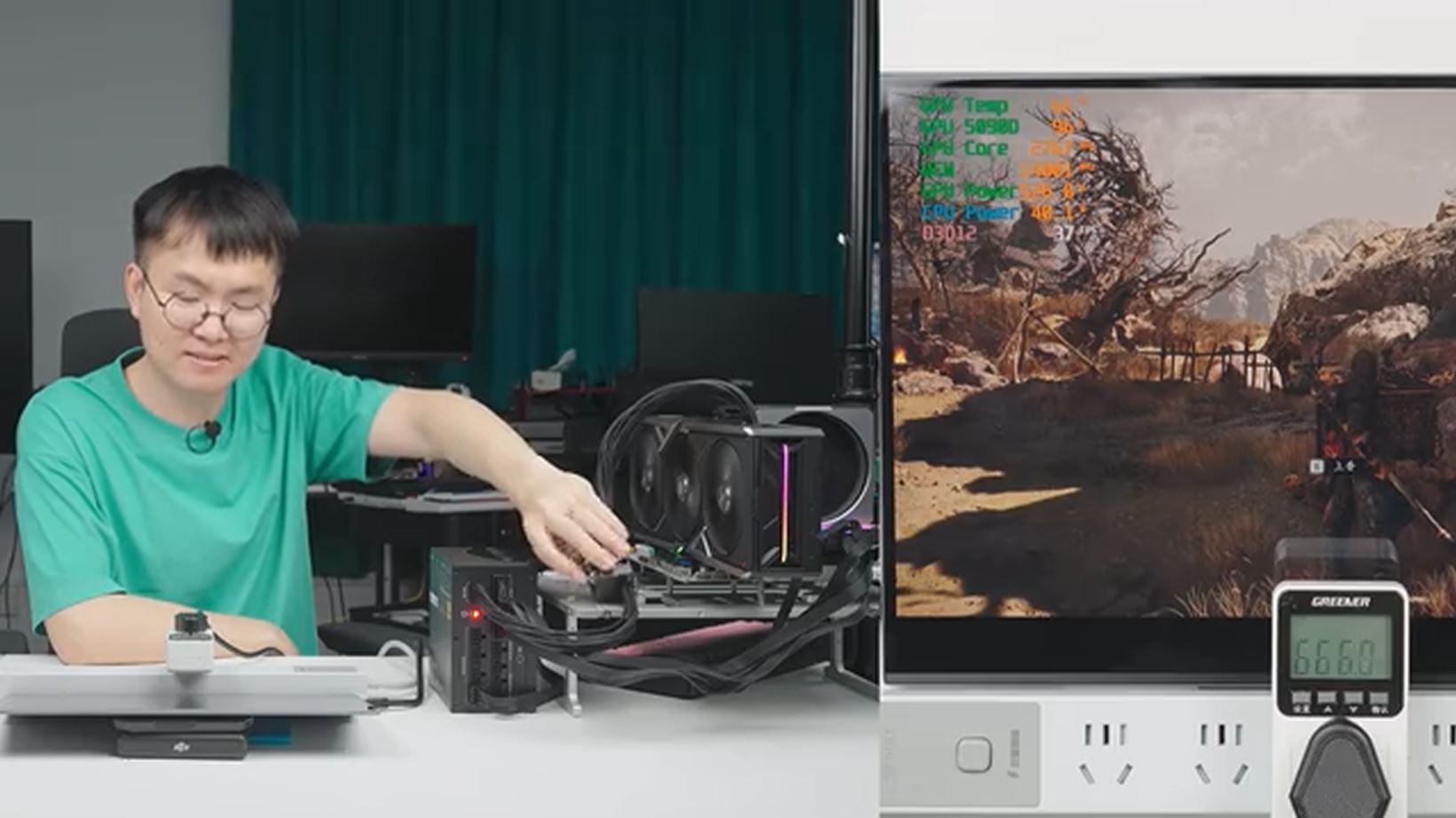

The protection behavior was shown by Chinese creator JustBuy using a simulation cable provided by Cooler Master. When the current stays below 9.3A per pin, the LED remains green. If it rises above that level, the LED flashes red. If it goes above 15A per pin, GPU Shield cuts power and the screen goes black.
The idea is useful, but the warning method may not be perfect. Since the LED is placed on the power supply near the connector, many users may not see it while gaming or working. A buzzer or software notification would be more obvious, especially if the system suddenly cuts GPU power.
Cooler Master first showed GPU Shield at CES 2026, where it described the feature as a way to monitor connector seating and current behavior. The new MWE Gold V4 shows that the company is now moving the idea into actual retail products.
Cooler Master is not alone in this area. MSI, Cybenetics, Seasonic, Corsair, and ASUS have all worked on their own safer 12V 2x6 cable or connector protection systems. Some focus on current imbalance, while others use thermal sensors or shutdown protection.
The broader goal is clear. High end GPUs can draw a lot of power, and the 16 pin connector has become a point of concern for PC builders. Until future graphics cards include stronger built in safety systems, features like GPU Shield may give buyers an extra layer of protection.
The MWE Gold V4 could be a practical option for builders who want a modern ATX 3.1 power supply with added safety monitoring. The main question is whether Cooler Master will bring the same GPU Shield versions to more regions outside China and whether future models will add clearer alerts than a small LED.
