Repair company iFixit has taken the Steam Frame apart, and the finding is how much of the headset separates by hand. The one thing it would change is the cooling fan, which sits so deep inside that reaching it disturbs most of the hardware around it.
The teardown article, published September 23, 2026, is written by Elizabeth Chamberlain. The company says it has partnered with Valve since 2022, selling parts and tools for the Steam Deck and the Index.
The article carries a disclosure. Valve had no input on the editorial process and did not review the teardown before publication.
What actually comes apart on the Steam Frame
The headstrap detaches from the optics and compute module as a single unit. The battery, the speakers and the consumable foams all live in that strap rather than in the part on your face.
The face and headrest foams come off for replacement. iFixit says the nose bridge is "also modular and independently replaceable," which is unusual on a headset.

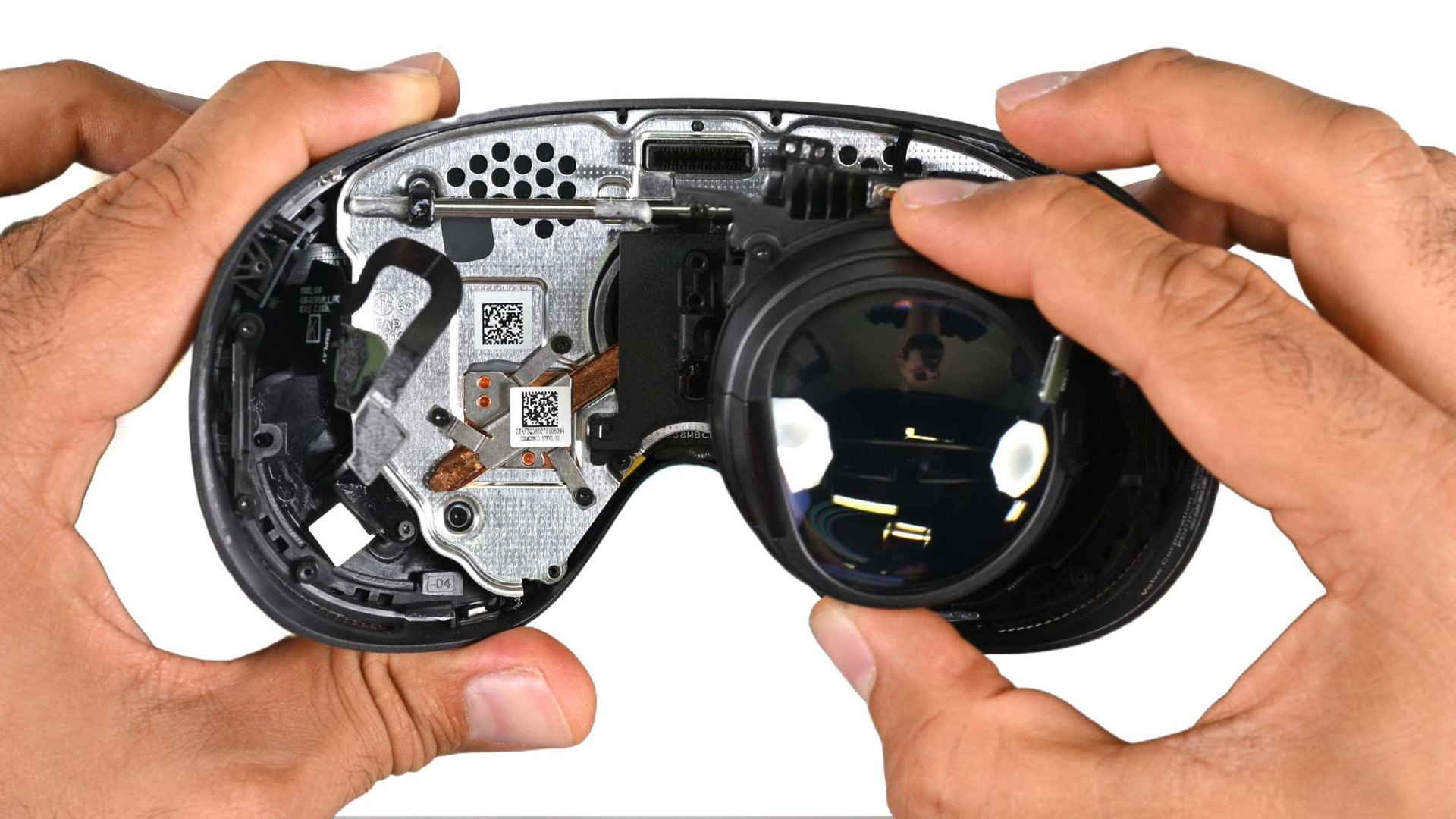

The optical assemblies are held to their rail magnetically. Sliding them to the widest IPD setting exposes the access screws. The teardown calls it "among the most approachable optical-module replacement procedures we've seen," and credits the magnetic mount for it.
Storage expands through an external microSD slot, up to 2TB, on top of the 256 GB or 1 TB models. Each controller runs on a standard AA battery. That is a large improvement on the Index controller's hard-to-reach rechargeable cell, iFixit says.
The fan is the clearest missed opportunity

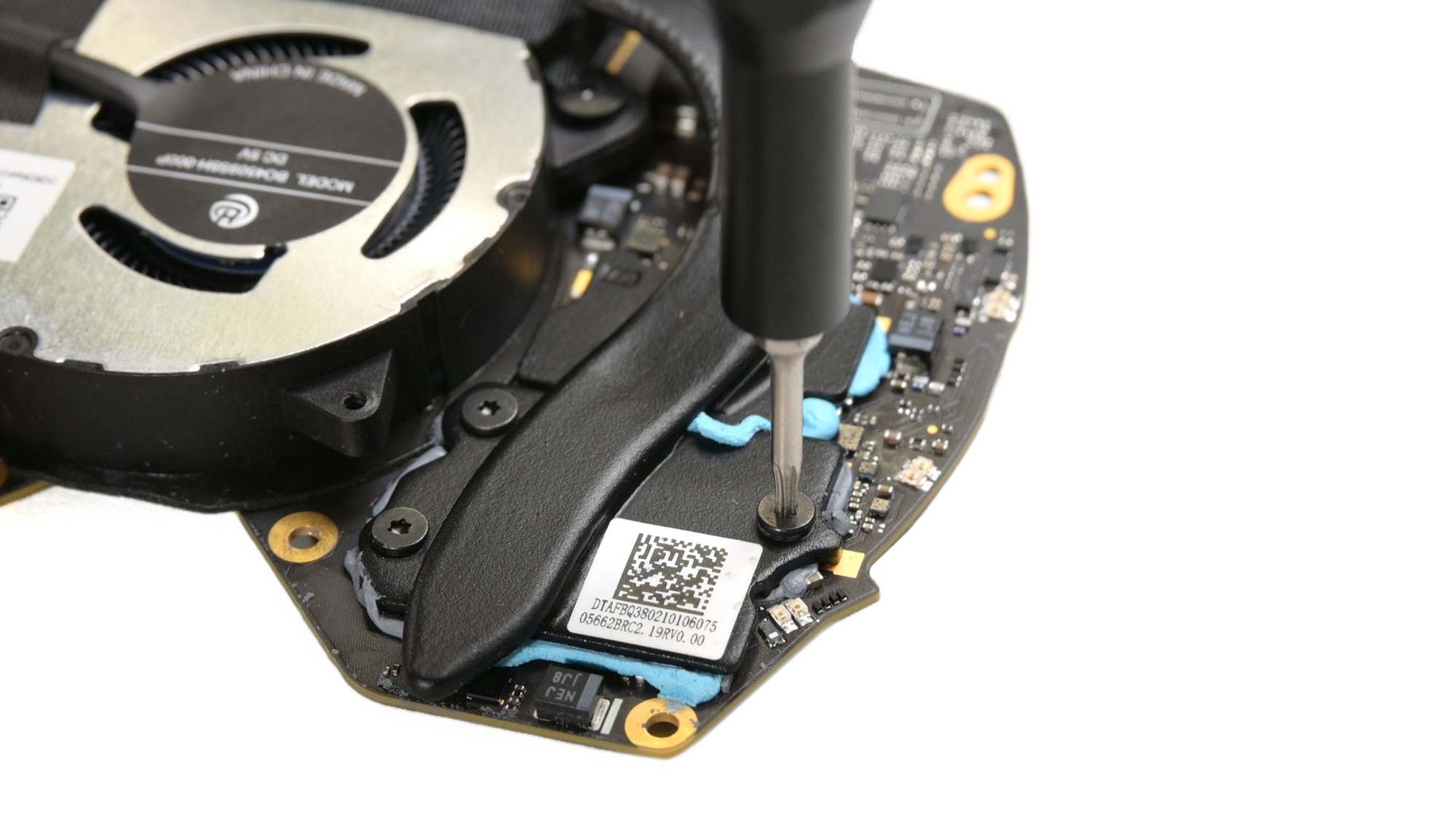

The praise stops at cooling. "Removing the fan takes us past the optics and through the dense internal assembly, disturbing far more hardware than we'd like for a replacement," iFixit writes. The teardown calls the fan "the Frame's clearest missed opportunity."
For context, the Index had no fan and ran hot enough that many owners fitted third-party fans in its frunk. The Frame has the fan, in a place that is awkward to reach.
Two other snags sit alongside it. The battery pack is glued in with no stretch-release tabs. The controller thumbstick is soldered to its board rather than plugged in.
The company's own list of fixes is short. It would change the battery adhesive, move the fan somewhere more accessible, and make the controller sticks replaceable without soldering.
Two different battery figures, depending on the source
The battery specification does not match across the two published sources. Valve's Steam Frame store page lists a "Rechargeable 21.6 Wh Li-ion battery," in its own wording.
The teardown describes the curved, two-cell pack in its own unit as lithium-polymer, rated at 20.9 Wh. That is a different capacity figure and a different chemistry label. Neither should be treated as definitive without naming the source it came from.
Valve's page also lists one rear USB-C 2.0 port for charging and data, at 15V and 3.0A for a 45W maximum. Charging speeds changed with the first SteamOS update for the Frame.
No score, no parts date, and no confirmed warranty position
There is no repairability score for the Frame, and that is deliberate. Chamberlain writes in the article's comments that iFixit does "not actually have a repairability scorecard for VR headsets (yet), so no score for this one," and adds an apology.
Listed categories cover phones, tablets, laptops, handheld game consoles and several audio products. Headsets are not among them. For scale, iFixit gave the original Steam Deck a 7 out of 10, among the highest scores it has given handheld consoles.
Parts are described only as "coming to our Valve Repair Hub soon," with no day, week or month attached. Batteries are not in that first wave. Displays are not either, so iFixit says it cannot yet quote a display price.
Whether opening the Frame affects Valve's warranty could not be confirmed as of September 25, 2026. The relevant Steam Support pages did not return their terms. Quotes circulating under a different iFixit staff name appear in neither the teardown nor the video description, so they are left out here. The headset launched at $1,059 with a standalone build of Half-Life: Alyx. The accessory market around it, including prescription lens inserts sold for the headset, is filling in faster than the repair parts.
