Thermal Grizzly WireView Pro II White Edition Adds GPU Power Monitoring for White PC Builds

Thermal Grizzly has released a white version of its WireView Pro II GPU power monitoring adapter, giving builders with white themed systems another option for checking the condition of their 12V 2x6 graphics card connection. The WireView Pro II White Edition is now listed as in stock and ready to ship.

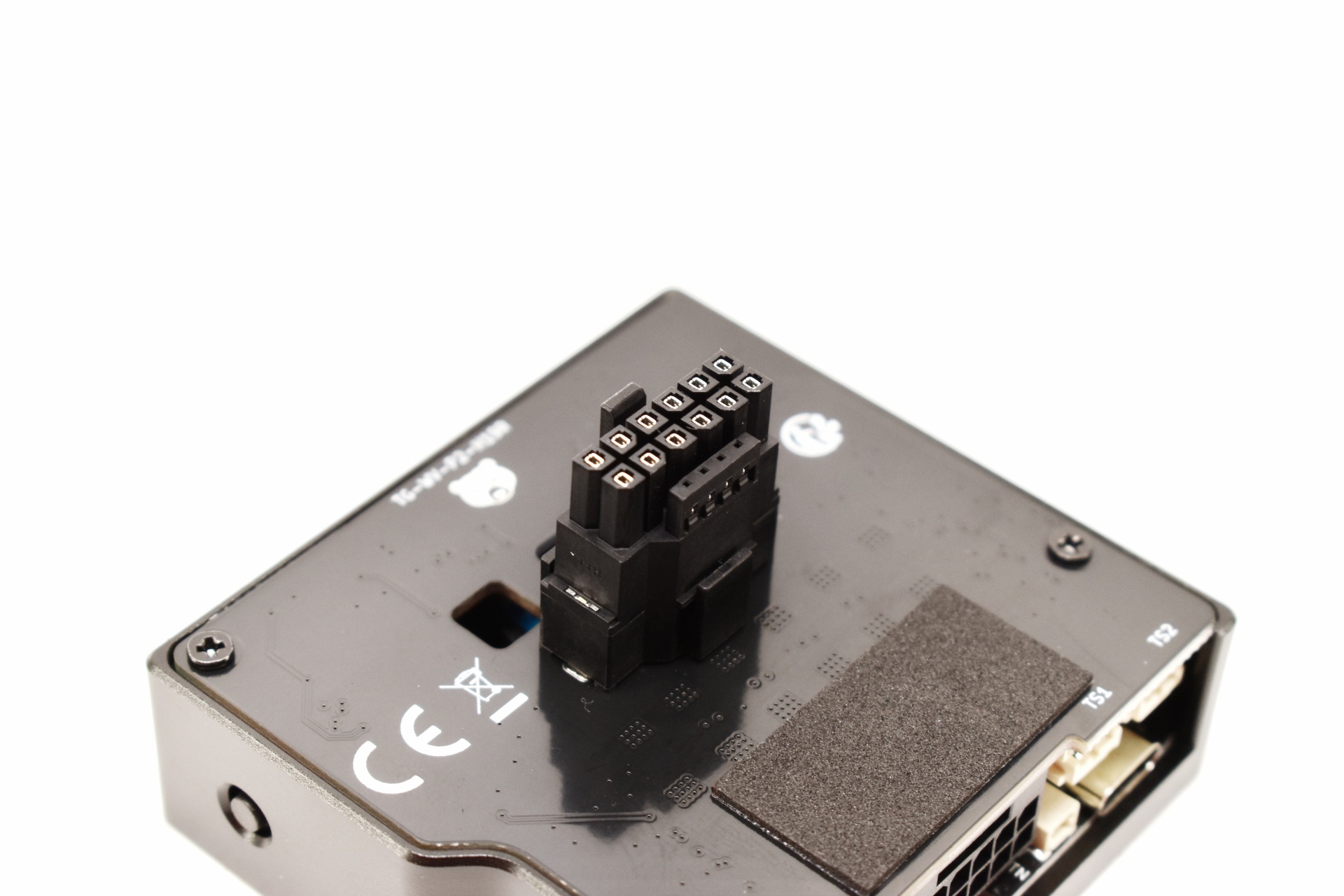

The device is designed for modern high power graphics cards that use the 12V 2x6 connector. It works as a 90 degree adapter while also displaying power related information such as voltage, current, temperature, and total GPU power draw.

Its main purpose is not simply to make cable routing cleaner. Thermal Grizzly says the adapter can monitor power delivery on each individual pin and wire, which could help identify uneven loads or possible connector problems before they become more serious.

That makes the product particularly relevant for owners of high end graphics cards, where power connector safety has become a larger concern in recent years.

Per Pin Monitoring Is the Main Feature of WireView Pro II

Most monitoring tools show total GPU power consumption, but WireView Pro II goes further by checking current levels for each individual pin and cable wire. This gives the device a more detailed view of how power is being delivered to the graphics card.

If one pin carries more load than expected or a connection begins to behave differently, the device can show a warning on its integrated display. It can also trigger an audible alarm when a configured limit is reached.

The WireView Pro II includes a 320 x 170 TFT IPS display that shows live readings directly on the adapter. This allows you to check the status of the GPU power connection without opening monitoring software on the desktop.

The Adapter Can Store Months of Power Data

WireView Pro II also records data over time. Thermal Grizzly says it logs readings every 60 seconds and can keep around 340 days of continuous data before older entries are replaced.

For typical usage, that could mean several years of stored records. This may be useful for enthusiasts who want to monitor long term changes in GPU behaviour, check how a system responds to overclocking, or investigate an issue that appears only occasionally.

The package includes the WireView Pro II adapter, a USB C to internal USB 2.0 cable, a Y splitter cable, and two external 10k NTC temperature sensors. The extra temperature sensors can be placed inside a case to monitor nearby components or areas around the graphics card.

A Premium Tool for High End GPU Owners

The white edition uses the same core design as the standard WireView Pro II, with the colour change aimed at people building white themed PCs. Thermal Grizzly lists the model at $146.13 including VAT, before shipping.

That price means it is not a necessary accessory for most gaming PCs. A properly installed quality power cable remains the most important factor for safe GPU operation.

However, for builders using expensive graphics cards, custom cables, high wattage power supplies, or heavy overclocking, the WireView Pro II offers more visibility than a standard adapter. It combines cable management, live monitoring, warnings, and long term data logging in one device.

The white version gives high end white PC builds a matching option without giving up the monitoring features that made the original WireView Pro II stand out.
