The 8BitDo Ultimate 3 for Xbox enters an increasingly crowded premium controller market with a long list of features aimed at players who want more customization without paying significantly more for first party hardware.
Priced at $99.99, the controller supports Xbox Series X|S, Xbox One, Windows PC, Android and iOS. It combines TMR magnetic thumbsticks, Hall effect triggers, additional programmable buttons, a wireless charging dock and extensive software customization in a package that compares well with more expensive options.
After extended use, the strongest part of the Ultimate 3 is not a single feature but how well the controller brings its hardware, comfort and customization together.
8BitDo Ultimate 3 Specifications
| Feature | Specification |
|---|---|
| Compatibility | Xbox Series X|S, Xbox One, Windows PC, Android, iOS |
| Connectivity | 2.4GHz wireless, Bluetooth, USB C |
| Thumbsticks | TMR magnetic sensors with adjustable Force Rings |
| Triggers | Hall effect impulse triggers |
| Trigger stops | Dual stage |
| Extra controls | L4 and R4 bumpers, two programmable rear buttons |
| Polling rate | Up to 1000Hz on PC |
| Motion controls | 6 axis on PC through 2.4GHz |
| Battery | 1000mAh |
| Battery life | Up to 20 hours |
| Charging | Wireless dock included |
| Price | $99.99 |
The controller also includes a redesigned disc D pad and a 3.5mm headset jack.
Adjustable TMR Sticks Are the Main Attraction
The standout feature is the pair of TMR magnetic sensor thumbsticks.
Magnetic sensing technology is increasingly popular because it avoids the traditional potentiometer design associated with stick drift over time.
8BitDo adds another layer of customization through physical Force Rings around each stick. These allow you to adjust the resistance of the thumbsticks without opening software menus.
Lighter resistance worked well for racing and faster action games during testing, while tighter settings provided more deliberate movement for aiming in shooters. The sticks remained smooth, accurate and responsive throughout the review period.
This is one of the more useful hardware customization options because it changes the physical feel of the controller rather than simply modifying sensitivity through software.
Hall Effect Triggers and Extra Buttons Add Flexibility
The Ultimate 3 also uses Hall effect triggers, removing another traditional mechanical wear point.
Dual stage trigger stops allow you to switch between full analog travel and shorter trigger pulls.
Full travel is better suited to games such as racers where fine throttle control matters, while the shorter setting works well in shooters where faster input can be more useful.

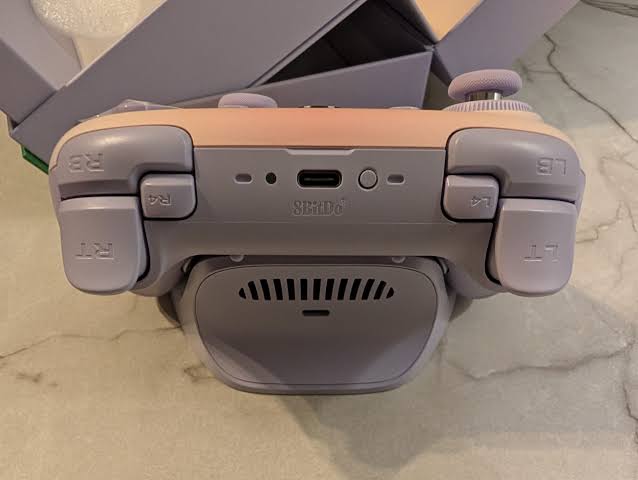

Two rear programmable buttons are joined by additional L4 and R4 bumpers.
The expanded control layout can feel crowded initially, but the extra buttons become useful once you adjust to their placement.
Comfort Holds Up During Long Sessions
8BitDo has redesigned the chassis with a wider grip angle and updated ergonomics.
The controller sits comfortably in the hands, while textured surfaces provide grip without feeling overly rough.
Long multiplayer sessions and extended single player use did not create noticeable discomfort during testing.
There is a short adjustment period, however.
The View and Menu buttons are positioned differently from Microsoft's standard Xbox controller, and the additional controls can initially interfere with established muscle memory.
That learning curve becomes less noticeable after a few days of regular use.
The Charging Dock Is Simple but Useful
The included wireless charging dock is one of the controller's strongest quality of life additions.
Placing the controller on the dock automatically keeps it charged between sessions, reducing the need to think about battery management.
The magnetic alignment is reliable, and the dock also works as a display stand when the controller is not being used.
Battery life is rated at up to 20 hours from the built in 1000mAh battery.
PC Gets a Few Exclusive Features
Xbox and Windows PC support 2.4GHz wireless connectivity and wired USB C operation, while Bluetooth extends compatibility to Android and iOS devices.
PC players receive several additional features, including polling rates of up to 1000Hz and 6 axis motion controls.
These features are not available on Xbox, although console players still receive the controller's magnetic sticks, trigger stops, programmable controls and wireless functionality.
8BitDo's software allows you to remap buttons, adjust trigger behavior, tune stick sensitivity, configure vibration and manage profiles.
The interface remains relatively straightforward rather than burying basic customization behind complicated menus.
A Strong Premium Controller Without Elite Pricing
The Ultimate 3 does have limitations.
It lacks swappable thumbsticks and does not offer a modular paddle system, while the extra controls take time to learn. The 1000Hz polling rate and motion controls are also limited to PC.
Still, the overall package is difficult to ignore at $99.99.
Adjustable TMR thumbsticks, Hall effect triggers, comfortable ergonomics, extra programmable controls and an included charging dock give the Ultimate 3 a broad feature set without pushing into the pricing territory of many premium controllers.
For Xbox and PC players looking for an alternative to the Elite Series 2, the 8BitDo Ultimate 3 offers a convincing combination of customization, comfort and value.
